Niobium Parts

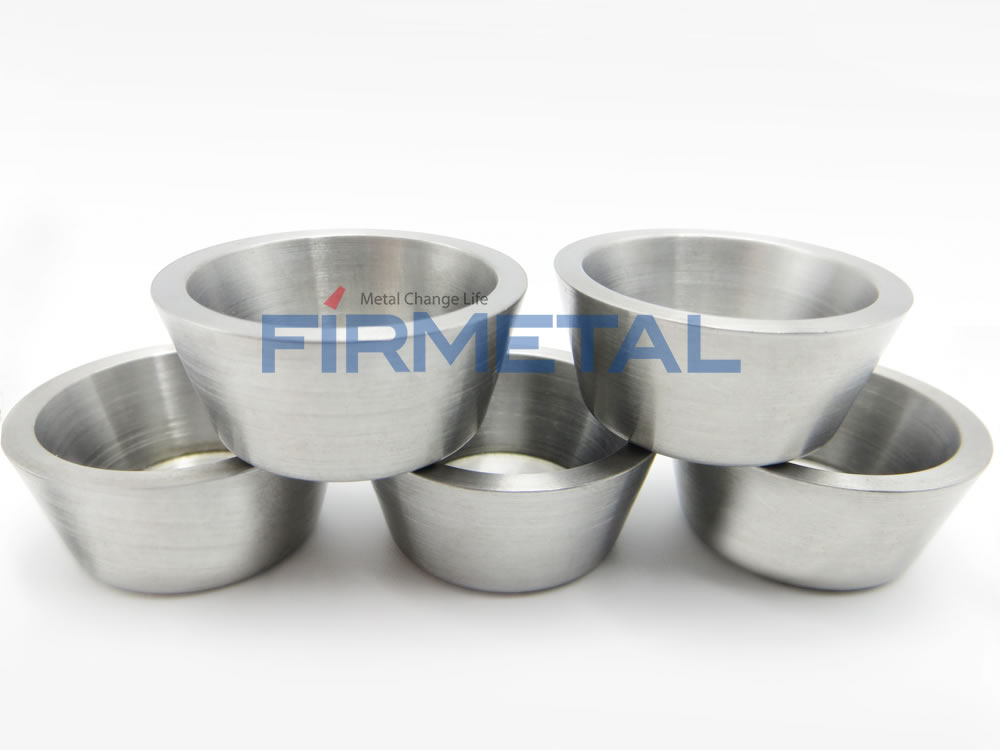

  • Niobium crucible
  • Niobium ball

Product Details

Niobium Parts Technology

  • Niobium material is malleable, can be cold forging, rolling, punching, pulling, spinning, extrusion, bending and other processing.
    Heat processing shall be carried out in a vacuum or protected state.

  • Heat treatment process: heat treatment must be under vacuum condition and 1100-1200 degrees Celsius. According to the material amount and material thickness to determine the heat preservation time, the niobium foil can not stack when recrystallization annealing.

  • Surface treatment: usually uses 180 mesh shutter grinding wheel to remove surface defects such as scratches, reoccupy siavlies180 mesh non-woven abrasive cloth mechanical polishing scratches on the surface of the processing, the surface state should be even.

  • Cutting and grinding performance: in order to overcome the phenomenon of adhesion, extrusion and surface roughness in the process of cutting, the coolant should be cooled by the coolant.

  • The commonly used welding methods are tungsten electrode argon arc welding, laser welding, electron beam welding, diffusion welding and brazing.

  • Niobium parts can be many different shapes, such as niobium tube, niobium bend, niobium flange.

Niobium Cutting and Grinding Performance
Item Turning Planning Milling Grinding
Speed/r·min-1 200 - 250 8 - 10m/min 250 - 300 -
Cutting Amount/mm 0.05 - 0.10 0.1 - 0.2 0.1 - 0.2
Coolant Lard Liquid/Emulsion Lard Liquid/Emulsion Lard Liquid/Emulsion
Tool W18Cr4V W18Cr4V W18Cr4V
Niobium Tungsten Electrode Argon Arc Welding Parameters
Materials to be welded Thickness/mm Welding Current/A Welding Voltage/V Welding Speed/m·h-1
Niobium 0.5 70 - 80 8 - 10 30 - 35
1.0 150 - 160 10 40
2.0 240 10 15
Niobium Tungsten Electrode Argon Arc Welding Parameters
Materials to be welded Thickness/mm Welding Current/A Welding Voltage/V Welding Speed/m·h-1
Niobium 0.8 23 40 26
1.0 17 - 17.5 65 - 70 30
1.5 27 85 30
Niobium Diffusion Welding Range
Materials to be welded Temperature/˚C Pressure/Mpa Time/min
Niobium 1250 14.7 15

If you need any assistance, please contact us.
