Niobium Rod & Bar

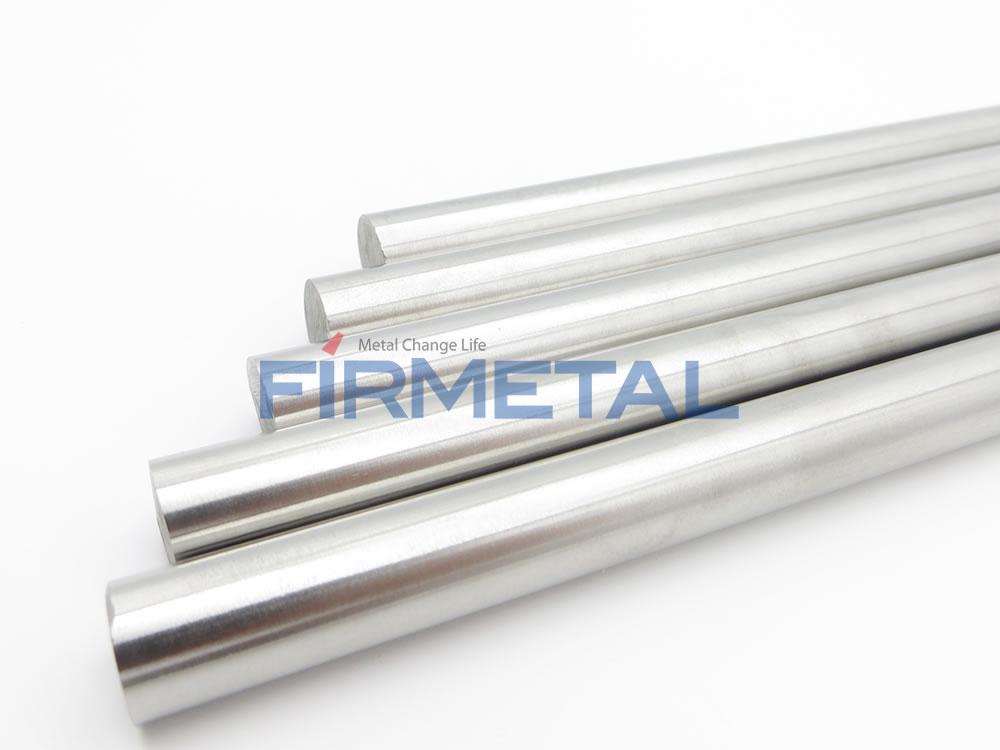

  • Niobium rod
  • Niobium bar

Product Details

Niobium Rod & Niobium Bar Standard

All niobium and niobium alloys rod & bar products follow standard ASTM B392, such as pure niobium rod & bar (R04200 , R04210) , Nb1Zr (R04251 R04261) , Nb10Zr , C103, Cb752, C129Y, FS85, Nb50Ti rod & bar and so on.

Niobium Rod & Niobium Bar Introduction

  • Niobium and niobium alloy rod & bar are widely used in chemistry, electronics, aerospace and other fields due to its high melting point, corrosion resistance and cold processing properties.

  • Appearance quality: cold and annealed rods should be free of cracks, folds, holes, metal and non-metallic inclusions, cold-lap, residual lubricant, oxides and other smudges.There should be no crack, folding and double-skin on the surface of hot treatment rod.

  • Rod surface allows a depth of less than half of the diameter tolerance. Pits, abrasions, scratches, and allows for straight, straight spirals and slight forged marks.

  • We produce pure niobium rod & bar and other niobium alloys rod & bar such as C-103 , Cb-752 , C129Y , Nb50Ti rod & bar for customers.

Niobium and Niobium Alloys Rod & Bar Chemical Composition (wt%≤)
Element Niobium R04200 Niobium R04210 Nb-1%Zirconium R04251 Nb-1%Zirconium R04261
C 0.01 0.01 0.01 0.01
N 0.01 0.01 0.01 0.01
O 0.015 0.025 0.015 0.025
H 0.0015 0.0015 0.0015 0.0015
Zr 0.02 0.02 0.8 to 1.2 0.8 to 1.2
Ta 0.1 0.3 0.1 0.5
Fe 0.005 0.01 0.005 0.01
S 0.005 0.005 0.005 0.005
W 0.03 0.05 0.03 0.05
Ni 0.005 0.005 0.005 0.005
Mo 0.010 0.020 0.010 0.050
Hf 0.02 0.02 0.02 0.02
Ti 0.02 0.03 0.02 0.03
B 2ppm - 2ppm -
Al 0.002 0.005 0.002 0.005
Be 0.005 - 0.005 -
Cr 0.002 - 0.002 -
C 0.002 - 0.002 -
Niobium and Niobium Alloys Rod & Bar Mechanical Property
Grade Ultimate Tensile Strength, Min, Psi (MPa) Yield Strength, Psi (MPa) Elongation min %, mm
Types 1 and 2 18 000 (125) 10 500 (73) 20
Types 3 and 4 28 000 (195) 18 000 (125) 15
Diameter Inch (mm) Tolerance+/-Inch (mm)
0.030 ~ 0.060 (0.76 ~ 1.52) 0.01 (0.025)
0.060 ~ 0.090 (1.52 ~ 2.29) 0.015 (0.038)
0.090 ~ 0.125 (2.29 ~ 3.18) 0.02 (0.051)
0.125 ~ 0.187 (3.18 ~ 4.75) 0.003 (0.076)
0.187 ~ 0.375 (4.75 ~ 9.53) 0.004 (0.102)
0.375 ~ 0.500 (9.53 ~ 12.7) 0.005 (0.127)
The tolerance can be adjusted based on customer's request.

Niobium Rod & Niobium Bar Application

Niobium and niobium alloy rod & bar is used as structure material of aircraft engine and rocket nozzle, reactor internal components and coating materials, production of nitric acid, hydrochloric acid or sulfuric acid corrosion resistance under the condition of various corrosion resistant parts.
Niobium rod application
